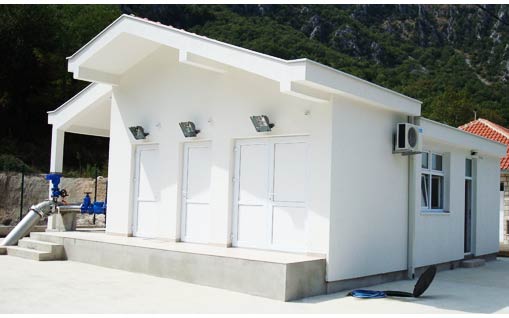

• Construction of a control facility;

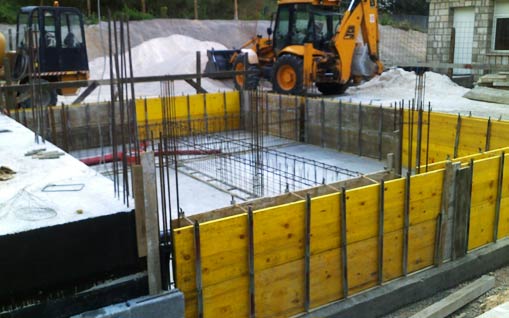

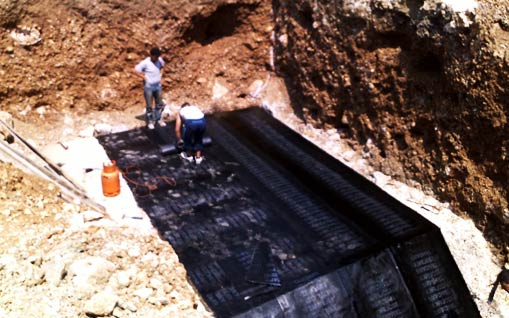

• Construction of water tank, capacity of 100m3 (from water catchment system „Vrmac“);
• Hydromechanical equipment in pumping station:
-Installation of three submersible well pumps ITT Vogel-Austria, characteristics: Q=37,5 l/s, H=65m;
-Installation of one submersible well pump ITT Vogel-Austria, characteristics: Q=25 l/s, H=35m;

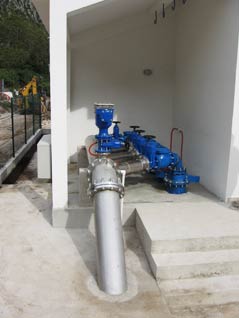

-Installation of three needle valves DN350 PN10 with electric start AUMA.
• Construction and installation of electrical equipment:

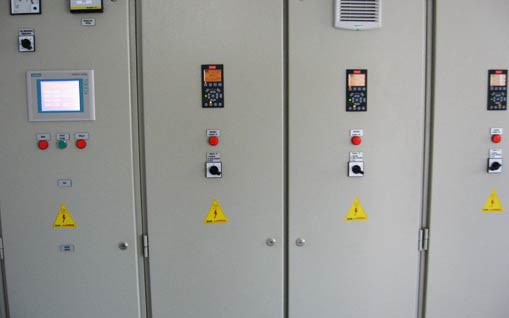

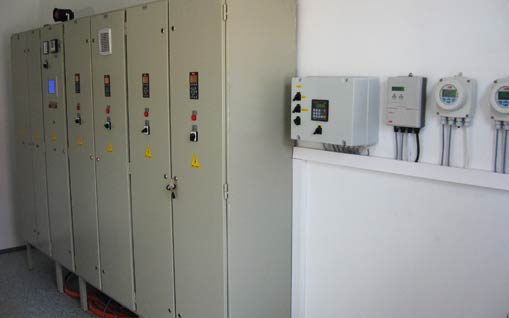

- Construction and installation of electrical cabinets with frequency controlers for pump aggregates operation and PLC for process control of pump station;
-Software development for PLC;
-Wiring and connecting of system;
-Installation of the optical cable in length of 2200m;
-Installation of the power cable for power transformer unit 10/0,4kV – for pump station.
• Measuring and regulation equipment in pumping station:
-Three flow meters WaterMaster DN200 PN10;
-Flow meter MagMaster DN350 PN10;
-Flow meter WaterMaster DN300 PN10;
-Electronic dry-run protection;
-Electronic pressure gauge 0-10 bar, with a current output signal of 4-20 mA.
Investor: Directorate for Planing and Construction of Kotor, May-August , 2010
Total value of project: €300.000
|
