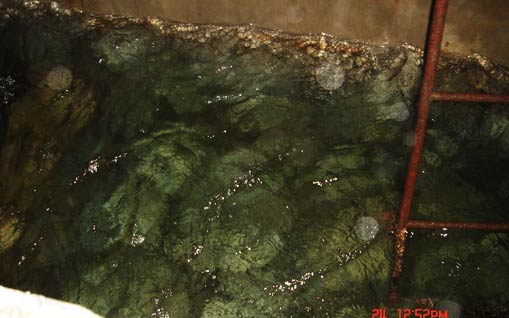

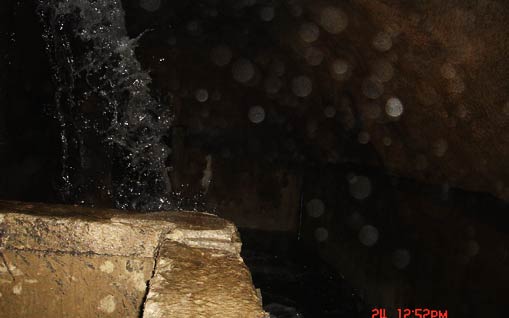

• Construction of water catchment facility, volume of 300m3;
• Hydro-mechanical equipment in pumping station:
-Installation of three submersible well pumps ITT Vogel-Austria, characteristics: Q=30l/s, H=60m;

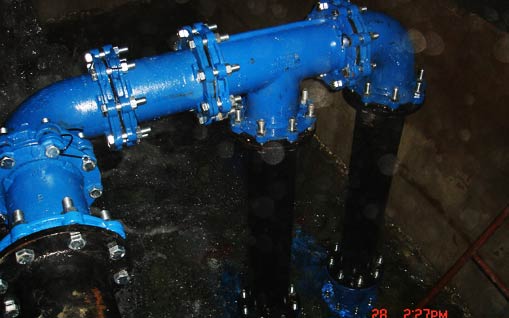

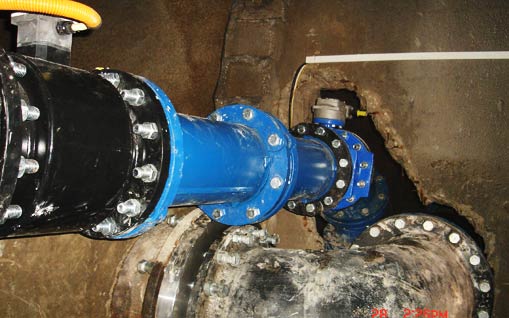

-Installation of pressure pipelines with all necessary fittings and armatures.
• Electrical works;
• Measuring and regulation equipment in pumping station:
-Electronic dry-run protection;
-Electronic continuous water level measurement in water catchment tank from 0 to 5m with a current output signal of 4-20 mA;
-Electronic pressure gauge 0-10 bar, with a current output signal of 4-20 mA;

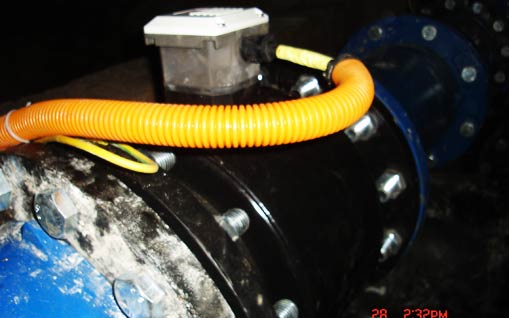

-Electromagnetic flow meter ABB MagMaster DN200 PN10;
Investor: „Rudnici Boksita“ A.D., Nikšić, 2006
|
