Saint Gobain PAM Italia, which is a member of the Saint Gobain Group, has been developing and manufacturing armatures for the regulation of water supply systems for more than 70 years.
Permanent development and long-lasting experience assure technical perfection and exceptional quality of their products.
Characteristics:

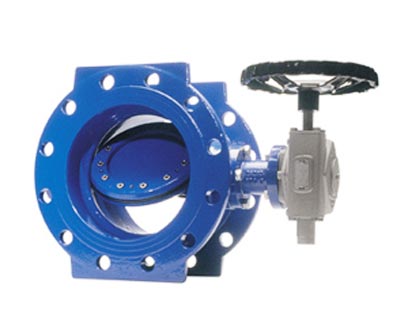

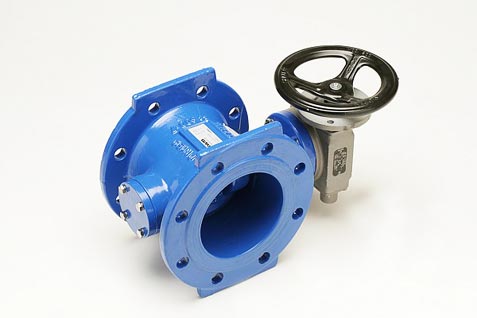

Locking butterfly valves are made of ductile cast iron (DCI), with a two-side epoxy protection layer of at least 250 microns, size range from DN 150 to DN 2000, pressure levels from PN 10 to PN 25.
This is a double eccentric version that provides perfect sealing and a long life span of the seat. The seat is made of stainless steel to assure durability. 100% sealing effect was assured in both ways with a special construction of seal clamping. Versions for installation into a shaft or ground are available. The valve can be powered manually, electrically or hydraulically.
|
