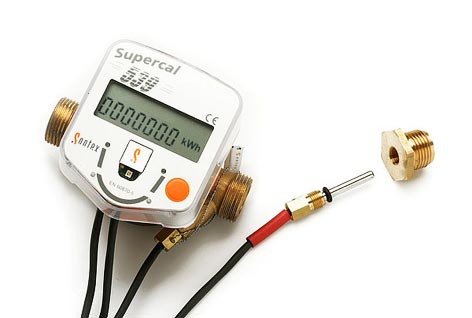

The SUPERCAL 539 compact thermal energy meter is produced by company Sontex S.A. from Switzerland, which is distinguished by long-lasting tradition and innovations in the area of measurement of thermal energy consumption.
Characteristics:
The compact meter Supercal 539 is meant for the measurement of consumption of thermal energy or a combination of thermal and cooling energy. The meter is especially appropriate for use in apartment blocks with an individual calculation of costs. Numerous communication options enable simple integration of meters into common reading systems.
The meter is simple for use and reading. It can be installed into the feedback or inlet. The entry part of the meter is equipped with a filter for large dirt particles.
The temperature sensor (Pt10000) of the feedback line is integrated into the housing of the flow sensor, while the sensor of the inlet part can be installed directly into the pipe or immersion tubes.
The calculator has a transparent 7-digit LCD display and can rotate by 359°. Under normal working conditions, the battery assures a life span of 6 years.
Versions and communication options:
539 Standard
- Optical interface
- Optical interface, Pulse output (E)
- Optical interface, M-BUS
- Optical interface, Two-way RADIO
539 Plus
- Optical interface, 2 pulse inputs
- Optical interface, Pulse output (E), 2 pulse inputs
- Optical interface, M-BUS, 2 pulse inputs
- Optical interface, Two-way RADIO, 2 pulse inputs
539 heating / cooling
- Optical interface
- Optical interface, Pulse output (E1), Pulse output (E2)
- Optical interface, M-BUS
- Optical interface, Two-way RADIO
539 heating / cooling Plus
- Optical interface, Pulse input (A)
- Optical interface, Pulse output (E1), Pulse output (E2), Pulse input (A)
- Optical interface, M-BUS, Pulse input(A)
- Optical interface, Two-way RADIO, Pulse input(A)
|
